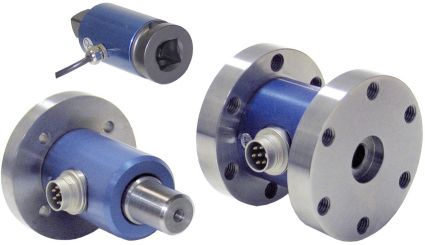

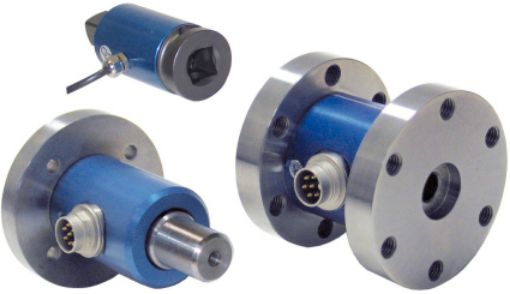

    Torque Sensor

    Varenr: 8627-5010-5050
    i h

    • Measurement range from 0 ... 1 Nm to 0 ... 5000 Nm
    • High accuracy 0.1 % F.S.
    • Reliable and durable
    • Simple handling and assembly
    • Output signal standardized
    • Different mechanical versions
    • Special versions and higher measurement ranges on request


    Application

    These torque sensors are qualified for static and dynamic measurements on non-rotary applications.

    Further the measurement of reaction torques on rotating machine parts is possible. Especially the torque sensors with flanges are preferred. They are mounted between motor and stator, e.g. in agitator drives. This enables a maintenancefree torque measurement. Another range of application is the testing of screw driving units and torque wrenches.


    For individual measuring tasks the design of our torque sensors can be adapted to the customer’s installation conditions.

    More application examples:

    1. Test structures in the field of precision mechanics
    2. Determination of friction torques
    3. Acquisition of breakage moments on screw caps

    Description

    The design has been optimized regarding overall length, weight and volume, so that axial forces up to relatively high limit values and bending moments of up to 20 % of the measuring range have only a small effect to the influence of the measuring element. Four metal film strain gauges are mounted on the measuring element and connected to form a full bridge. When applying AC or DC voltage on the bridge, the mechanical value torque is converted into electrical voltage. The necessary amplifier either delivers a norm signal (0 … 10 V, 0/4 … 20 mA) or – with indicator module – a torque signal truly corresponding to the measured variable.

    The sensor output signal is standardized, so that an exchange of the sensor (spare part) does not require any new adjustment of the measuring chain.

    Download data sheetDownload data sheet
    *
    *
    *
