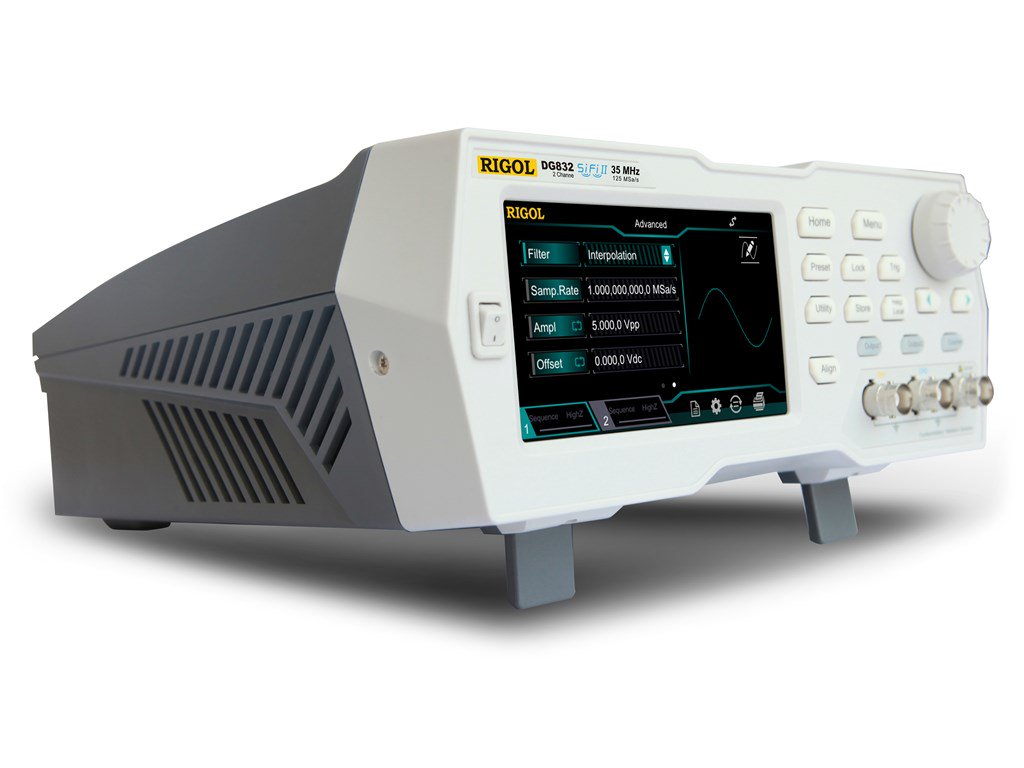

    Rigol DG832 35MHz, 2 cha.,125MSa/s Function/Arb. Generator

    Varenr: DG832
    i h
    Unique SiFi II (Signal Fidelity II) technology: generate the arbitrary
    waveforms point by point; recover the signal without distortion; sample
    rate accurate and adjustable; jitter of all the output waveforms
    (including Sine, Pulse, etc.) as low as 200 ps
    2 Mpts memory depth (standard); 8 Mpts memory depth (optional) per
    channel for arbitrary waveforms
    Optional dual-channel with the same performance, equivalent to two
    independent signal sources
    High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
    Built-in high-order harmonic generator (at most 8-order harmonics)
    Built-in 7 digits/s, 240 MHz bandwidth full featured frequency counter
    Up to 160 built-in arbitrary waveforms, covering the common signals
    in engineering application, medical electronics, auto electronics, math
    processing, and other various fields
    Sample rate up to 125 MSa/s, vertical resolution 16 bits
    Arbitrary waveform sequence editing function available; arbitrary
    waveforms also can be generated through the PC software
    Various analog and digital modulation functions: AM, FM, PM, ASK, FSK,
    PSK, and PWM.
    Standard waveform combine function, capable of outputting specified
    waveforms combined with the basic waveforms
    Standard channel tracking function, when enabled, all the parameters of
    both channels are updated based on users' configurations
    USB Host&Device interface (standard); USB-GPIB function supported
    4.3'' TFT color touch screen
    RS232, PRBS, and Dual-tone outputs supported
    *
    *
    *
