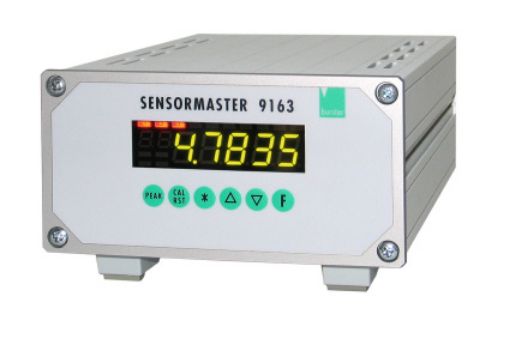

    Digital Indicator Profi Bus

    Varenr: 9163-V30000
    i h
  • For force, pressure or torque measurements using strain gauge sensors
  • For position or angle measurement using potentiometric or DC/DC sensors
  • For temperature measurement using Pt 100 sensors or thermocouples
  • Optional multi-channel model
  • Optional Profibus or serial interface
  • 0.1 % measurement accuracy plus sensor-specific linearization
  • Range of mathematical functions (e.g. differential measurement)
  • OK/NOK feedback on multi color display and via 4 alarm limit outputs
  • High sampling rate (500/sec.)
  • Description:

    The latest microprocessor technology has been used to pack a huge amount of engineering into the minimum space. Essential device settings can be made via the six-button keypad. Permanent settings such as the choice of excitation voltage are made using jumpers. The large 13 mm high, 7 segment display ensures that measurements and menu parameters can be read clearly.

    The integral excitation voltage source supplies the sensors and provides the auxiliary power for any transmitters that are connected. The manual linearization facility with 32 data points means that even non-linear sensor curves can be input.

    The indicator also supports memory functions for min, max and peak-to-peak values. The high measurement rate of 500 readings/s also ensures a rapid response by the four built-in alarm limit relays. TTL switched outputs can be provided as an alternative option. The device settings can be configured via the keypad or the optional RS232, RS485 or Profibus interface.

    A GSD file is supplied as standard with the Profibus option for Profibus integration.

    A powerful software tool for data analysis and documentation is available on request for use with the RS232 and RS485 options.
